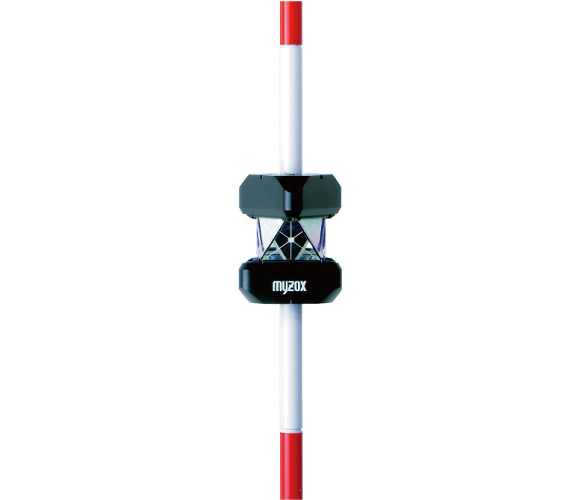

MYZOX REVO360
MUCH-ANTICIPATED 360° PRISM
Imposing body by shaving off the aluminium block.

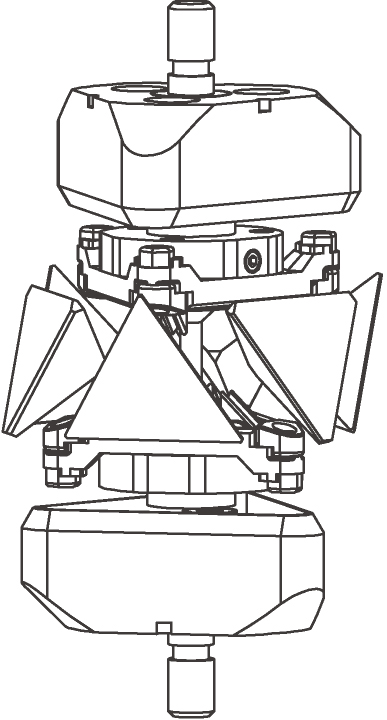

Replaceable prism
Each prism is independent. It means those prisms are non-glued. In case the prism is broken, it is replaceable at a minimum loss.
This structure saves money for users or renting business companies.
(No need to buy new prism)

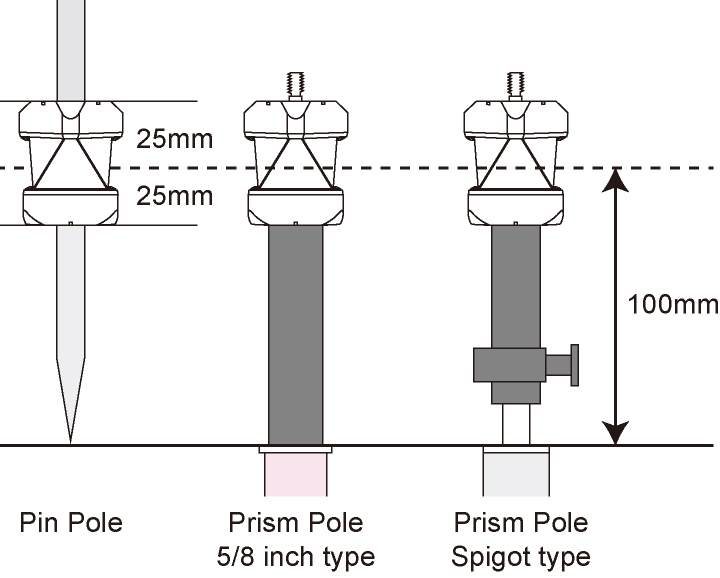

Compatible with φ9mm pin pole
REVO360 have 6mm screw at the top and bottom. 6mm screw is used for φ9mm pole, which is widely distributed.
Product details
| Brand | MYZOX |
|---|---|
| Model | REVO360 |
| Specifications | |
| Prism constant | -4.4mm (Leica : +30mm) |
| Prism height | 25mm |
| Targetable angle | H : 360° V : ±25° |
| Screw | φ6mm male |
| Dimensions | 46(W) × 46(D) × 74(H)mm |
| Weight | ~120g |
| Options | |
| Prism Pole Adapter PPA100R | |
| Dimensions | φ25 × 75mm |
| Weight | 90g |
| Screw (Top) | φ6mm female |
| Screw (Bottom) | 5/8 inch female |
| Leica Pole Adapter LSP100R | |
| Dimensions | 38 × 30 × 62mm |
| Weight | 60g |
| Screw (Top) | φ6mm female |
| Screw (Bottom) | Spigot |
